There were three main types of guns emplaced at Point Nepean during its long history.

Rifled Muzzle Loading Guns (RMLs)

a) RML 80 pounder (x4)

1878 – 1886

The introduction of rifled muzzle loaders (also classed as RMLs) rendered smoothbore guns largely obsolete. However, the 68-pounder and other smoothbores still existed in large numbers and various attempts were made to adapt the guns to fire new projectiles. Eventually Captain William Palliser patented a method of boring out the gun barrel and inserting a wrought iron rifled liner. This allowed rifled shot and shells to be fired from old smoothbore cannon and experiments revealed that it made them even more powerful than they had been before.

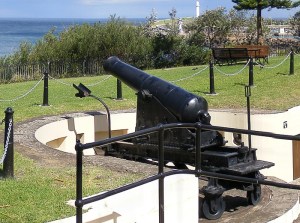

RML 80-Pounder 5 Ton

RML 80-Pounder 5 Ton
Smiths Hill Fort NSW

Introduced in 1872, 68-pounders adapted in this way had a calibre of 6.3 inches (16.00 cm) and were known as a RML 68-pounder, or officially as the RML 80-pounder 5 ton. With a 10 lb (4.5 kg) powder charge they could fire an 80 lb (36 kg) projectile at a muzzle velocity of 1,240 feet per second (380 m/s). They were deployed as coast defence and garrison artillery around the British Empire and remained in service until eventually declared obsolete in 1921.

source: Wikipedia HERE

b) RML 9 inch (x1)

c.1885 – Removed by August 1893

The RML 9 inch guns Mark I – Mark VI were large rifled muzzle-loading guns used as primary armament on smaller British ironclad battleships and secondary armament on larger battleships, and also ashore for coast defence.

RML 9 inch queenscliff

RML 9 inch Gun
originally from Swan Island
now at Queenscliff

The rifling was the “Woolwich” pattern of a relatively small number of broad, rounded shallow grooves : there were 6 grooves, increasing from 0 to 1 turn in 45 calibres (i.e. 405 inches).

source: Wikipedia HERE

top of page

Breech Loading Guns

a) on a central pivot mounting

i) 6 inch (x1)

1887 – 1915

The BL 6 inch gun Mk V was an early Elswick Ordnance Company (later becoming Sir W.G. Armstrong & Company) breech-loading naval gun originally designed to use the old gunpowder propellants. They were used for coast defence around the British Empire.

This was an Elswick Ordnance export design, completely different to and longer (30-calibres, 183.5 inch bore) than the contemporary 26-calibres British naval service 6-inch Mk III, IV and VI guns designed by the Royal Gun Factory, although it fired the same 100-pound projectiles. The gun was of a complex all-steel built-up construction, of a steel A-tube surrounded by multiple steel hoops, breech-piece and jacket.

Several were acquired by the British government for coast defence in the UK and were given the designation 6-inch gun Mark V. The breech fittings and firing mechanism were modified in British service to standardize them with the British service guns, Mark IV and VI. The breech-screw was locked by turning to the left, unlike standard service guns made by the Royal Gun Factory, which all locked to the right. Rifling consisted of 28 grooves of the polygroove “Elswick section” type, increasing from 0 to 1 turn in 30 calibres (i.e. 1 turn in 180 inches) at the muzzle.

They were also exported for use as coastal defence guns in Hong Kong, New Zealand, Australian colonies and Siam (Thailand), typically as disappearing guns.

source: Wikipedia HERE

6 inch centre pivot

BL 6 inch gun Mk v on Centre Pivot

The diagram above shows the Sir W.G.Armstrong Mitchell & Company built Armstrong BL 6-inch gun on Centre Pivot Barbette mounting, as supplied to Australian colonies.

ii) 6 inch Mark VII (x4)

1910 – 1945

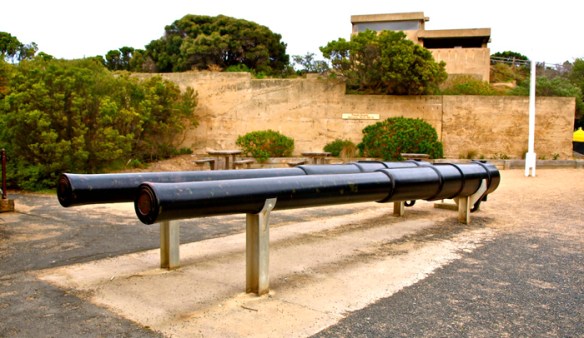

Two 6 inch Mk VIIs that fired the first shots

The two 6 inch Mk VIIs
that fired the first shots of

The BL 6 inch Gun Mark VII (and the related Mk VIII) was a British naval gun dating from 1899, which was mounted on a heavy traveling carriage in 1915 for British Army service to become one of the main heavy field guns in the First World War, and also served as one of the main coast defence guns throughout the British Empire until the 1950s.

The gun superseded the QF 6-inch gun of the 1890s, a period during which the Royal Navy had evaluated QF technology (i.e. loading propellant charges in brass cartridge cases) for all classes of guns up to 6 inch to increase rates of fire. BL Mk VII returned to loading charges in silk bags after it was determined that with new single-action breech mechanisms a 6-inch BL gun could be loaded, vent tube inserted and fired as quickly as a QF 6 inch gun. Cordite charges in silk bags stored for a BL gun were also considered to represent a considerable saving in weight and magazine space compared to the bulky brass QF cartridge cases.

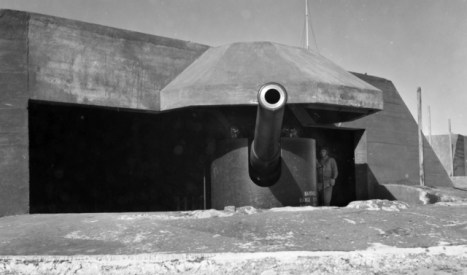

BL 6 inch gun Mk VII c1943

BL 6 inch gun Mk VII
at Pt Nepean c1943

The 6-inch Mk VII gun, together with the 9.2-inch Mk X gun, provided the main coast defence throughout the British Empire, from the early 1900s until the abolition of coast artillery in the 1950s. Many guns were specially built for army coast defence use, and following the decommissioning of many obsolete cruisers and battleships after World War I, their 6-inch Mk VII guns were also recycled for coast defence.

103 of these guns were in service in World War I in coastal defences around the UK. Some of these, together with others at ports around the wider British Empire, played an important defence role in World War II and remained in service until the 1950s.

source: Wikipedia HERE

top of page

Disappearing Guns – on a hydropneumatic mounting

These were breech loading guns on hydropneumatic carriages. The gun could be loaded in safety in the pit and emerged only for a moment before it fired and retracted. Thus the advantage of the disappearing gun was that it was difficult for a ship to see.28

disappearing gun queenscliff

8 inch Disappearing Gun
from South Channel Fort
now at Queenscliff

It also made reloading easier, since it lowered the breech to a level just above the loading platform, and shells could be rolled right up to the open breech for loading and ramming. Although it had these advantages, the disappearing carriage was also a complicated mechanism.

The disappearing gun was usually moved down behind the parapet or into its protective housing by the force of its own recoil, which (on many models) lifted a counterweight. Before firing, the crew tripped a catch on the counterweight, causing it to fall into a well at the center of the gun position and move the gun back up “into battery” (firing position).

Some disappearing guns also used compressed air, while a few were built to be raised by steam.

The disappearing gun had several drawbacks as well:

The carriage design restricted maximum elevation to under 20 degrees and thus lacked the necessary range to match newer naval guns entering service during the early part of the 20th century. The additional elevation gained by mounting the same gun on a later non-disappearing carriage increased their range.

The time taken for the gun to swing up and down and be reloaded slowed the rate of fire. Surviving records indicate a rate of fire of 1 round per 1 to 2 minutes for an 8-inch (20 cm) gun, significantly slower than less complicated guns.

The improvement in the speed of warships demanded an increased rate of firing. The disappearing gun was at a disadvantage compared with a gun that stayed in position as one could not aim or reposition a disappearing gun while it was in the lowered position. The gunner still had to climb atop the weapon via an elevated platform to sight and lay the weapon after it was returned to firing position, or receive fire control information (range and bearing) transmitted from a remote location.

Their relative size and complexity also made them expensive compared with non-disappearing mounts.

source: Wikipedia HERE

i) 6 inch (x2)

1887 – 1919

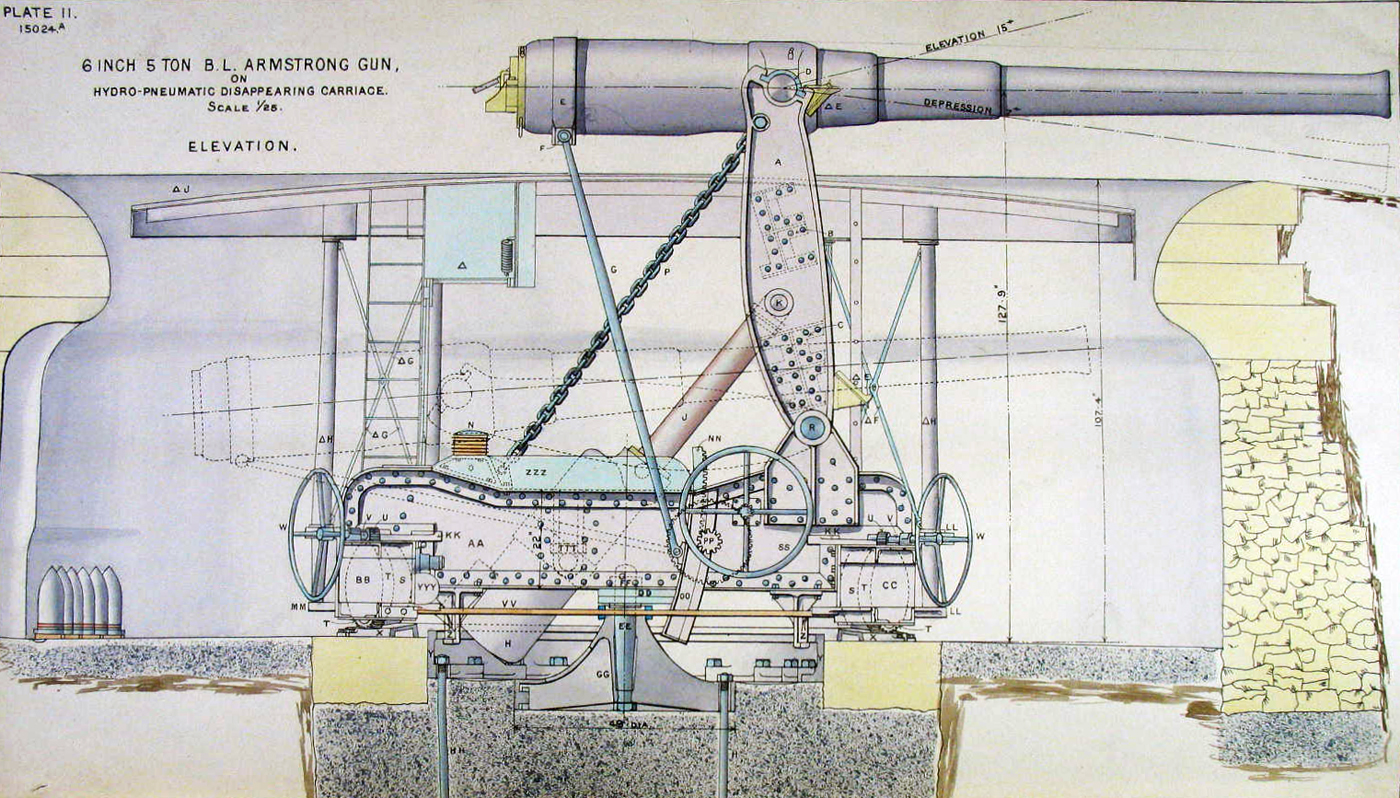

6 inch 5 ton gun on disappearing carriage

6 inch 5 ton BL Armstrong Gun
on disappearing carriage
(click on for larger image)

ii) 9.2 inch (2)

iii) 10 inch (1)

top of page

Quick-firing Guns

These used ‘fixed ammunition’, that is, the projectile and cartridge were made up in one piece. Each round could be handled and loaded faster than before and there was no need to swab out the chamber of the gun before firing as the charge was exploded in the metal cartridge which was ejected.29

QF 12 & 14 pdr CP MkII Shell

QF 12 & 14 pdr
CP MkII Shell

a) 14 pounder (x1)

The QF 14 pounder was a 3-inch medium-velocity naval gun used to equip warships for defence against torpedo boats. It was produced for export by Maxim-Nordenfelt (later Vickers, Sons and Maxim) in competition with the Elswick QF 12-pounder 12 cwt and QF 12-pounder 18 cwt guns.

QF 14 pounder HMVS Cerberus 1900

QF 14 pounder on
HMVS Cerberus 1900

source: Wikipedia HERE

b) 4.7 inch (1)

Table of the Guns

Table of The Guns (click on to enlarge)

top of page

Gun Crews

A newspaper report of 1889 described the way the guns were fired:

A gun crew usually consisted of nine men, but firing could be achieved by as few as five gunners. The first task was to sponge the gun out. The charge (powder and shot or shell) was brought from the magazine on a trolley and raised by a derrick to the muzzle of the gun where it was rammed home by two men. The charge is then pricked through the vent by a steel pricker which pierces the flannel bag containing the charge. A friction tube is placed in the vent to which is attached a lanyard, the gun is then trained and the sights being brought to bear, it is fired. The target used for practice was towed by a boat and the results of the shots were conveyed back to the gunners by flag signals. The steam launch Mars was used for target practice within Port Phillip Bay.30
